Modular stand-alone access control keypad B880-KJ with One-Time-Use codes

B-880-KJ is a stand-alone access control keypad with two relay outputs. Without casing. Designed to be built into a mailbox, a locker or a door side panel.

Surface mount or flush mount accessories are available upon request.

The B880 keypad has two relays - allows you to control two devices.

Relay 1 is activated with User Access Codes of 1 up to 10 digits.

Relay 2 is activated with One-Time-Use 4-digit access codes.

A One-Time-Use access code can be given to e.g. a delivery courier. The code becomes inactive after one use.

Each keypad comes equipped with a unique list of 750 One-Time-Use codes. After all the codes are used, the list can be restored.

An optional RFID module can be connected to the keypad, allowing you to open the door with a code or an RFID tag. RFID reader module sold separately.

Three LED lights indicate the operational status of the module and help with programming the keypad.

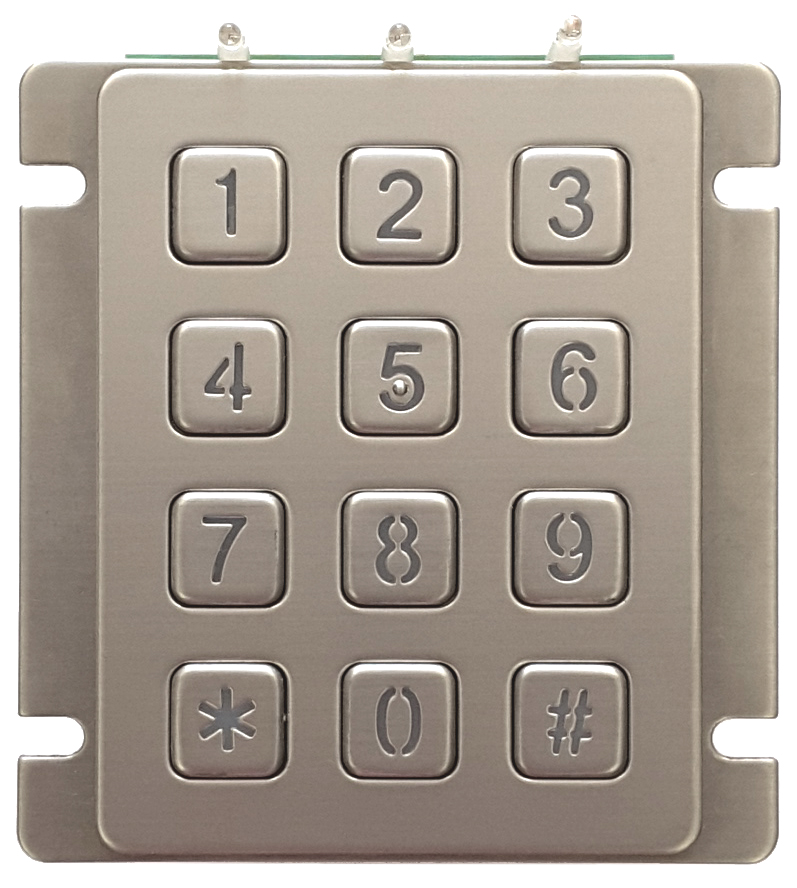

The B880 keypad is weatherproof and vandal-resistant. The keys and the mounting plate are made from stainless steel. Numbers on the keys are backlit with white LEDs.

Two versions of the keypad are available:

• PL – with a decorative front plate made from brushed stainless steel

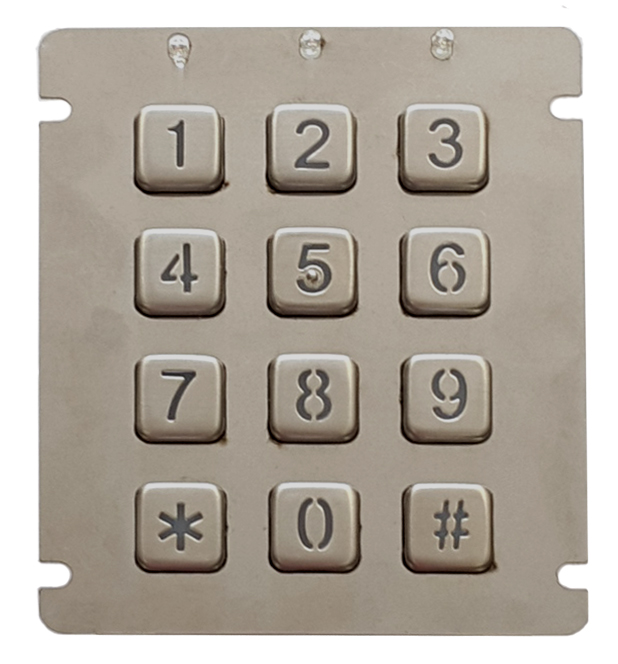

• KL – with a technical mounting plate only

Features:

• 2 relay outputs - independent control of 2 devices
• LED-backlit keys
• Optional RFID reader module (sold separately)
• 1 Security Key Code
• Up to 250 User Access Codes (or RFID tags) for Relay 1
• Variable User Access Code code length from 1 up to 10 digits
• A unique list of 750 One-Time-Use 4-digit codes for Relay 2
• Programmable directly from the keypad or from a PC computer (special USB cable is necessary)
• Programmable relay activation time 1–99 seconds or bistable work mode
• Additional 12V DC max. 0,5A output for powering external devices
• 2 external pushbuttons for door release can be connected
• Operating temperature: -25 - +70 C
• Operating voltage: 6–18VAC or 8–24VDC
