Hikvision DS-KD8003-IME2/EU 2-wire IP video intercom main module door station

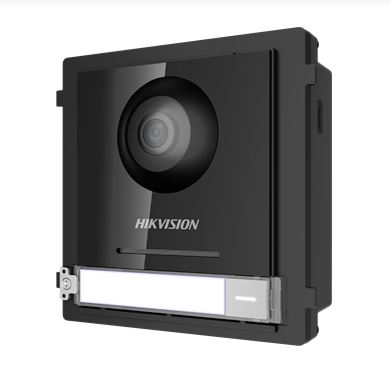

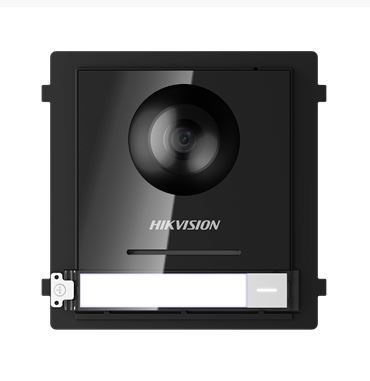

Hikvision DS-KD8003-IME2/EU 2-wire IP video intercom main module with camera and 1 call button

Main door station module with camera and one pushbutton. Without a mounting fame.

For Hikvision second generation 2-wire IP modular video intercom.

With one call button with an illuminated name tag.

Includes 4 I/O inputs and 2 relays (NO/NC) for opening the door and an additional gate.

Easy to install and extend. Supports sub-modules access (max. 7), e.g. keypad, additional call buttons.

Installation

The main module is installed together with any extension modules in a surface-mounting or flush-mounting installation frame.

Frames are sold separately.

Can be integrated into a mailbox (no additional frames necessary).

Hikvision 2-wire IP system

Specification:

• 2-wire connection with the audio/video+power distributor
• IP-based system
• Supports up to 7 extension modules
• 2 MPx HD color video intercom function
• Fisheye camera (180/96 degrees), 1920×1080 / 720x480 stream
• IR supplement light
• Access control function: 2 NO/NC
• I/O input: 4
• Supports: DNR, WDR
• H.264 video compression
• Audio compression standard: G.711 U
• Audio compression rate: 64 Kbps
• Noise suppression and echo cancellation
• Advanced settings: within the iVMS-4200 software tool
• Mobile app: HIK-Connect
• Anti-flicker (50 Hz, 60 Hz)
• Protocols: TCP/IP, RTSP
• Power supply: DC 12V or DC 24V
• Power consumption: < do 16W / 24VDC or < 20W / 12VDC
• IP65
• Surface- or flush-mounted - installation frames sold separately
• Dimensions: 98 x 99.8 × 43.9 mm
